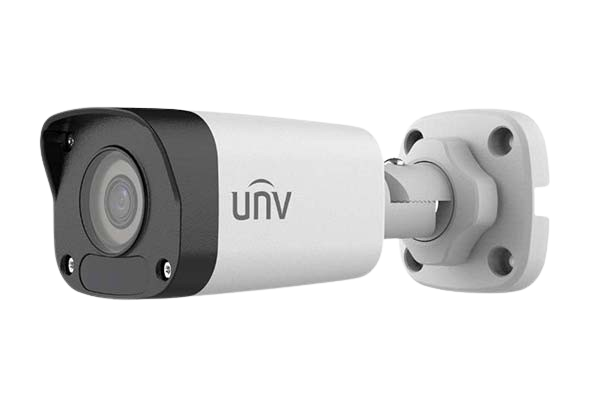

Naeem Technologies presents the UNV IPC2122LB-SF40-A 2MP Mini Fixed Bullet Network Camera, a compact and reliable IP surveillance solution designed for homes, offices, shops and commercial security systems.

With 2MP Full HD resolution, 1080P video, 4mm fixed lens and Smart IR night vision up to 30 meters, this camera delivers clear surveillance footage during both day and night.

The camera supports Ultra 265, H.265 and H.264 video compression, helping reduce storage and bandwidth requirements. It also supports PoE, making installation easier by allowing power and network connectivity through a single Ethernet cable.

Its IP67 weather-resistant design makes it suitable for outdoor installations, while features such as DWDR, BLC, HLC, 2D/3D DNR and Smart IR help improve image quality in different lighting conditions.

Naeem Technologies provides smart security and CCTV solutions across Pakistan, helping customers build reliable and modern security systems.

 High quality image with 2MP, 1/2.8″CMOS sensor

• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps

• Ultra 265, H.265, H.264

• Smart IR, up to 30m (98ft) IR distance

• Day/night functionality

• 2D/3D DNR (Digital Noise Reduction)

• IP67 protection

• Support PoE power supply

• 3-Axis

Specifications:

Camera

Sensor 1/2.8″, 2.0 megapixel, progressive scan, CMOS

Lens  4.0mm@F2.0

DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)

4.0 62.1 24.8 12.4 6.2

Angle of View (H)  87.5°

Angle of View (V)  46.3°

Angle of View (O)  92.4°

Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°

Shutter Auto/Manual, 1 ~ 1/100000s

Minimum Illumination Colour: 0.01Lux (F2.0, AGC ON)

0Lux with IR on

Digital noise reduction 2D/3D DNR

Day/Night IR-cut filter with auto switch (ICR)

S/N >52dB

IR Range Up to 30m (98ft) IR range

Wavelength 850nm

IR On/Off Control Auto/Manual

Defog Digital Defog

WDR DWDR

Video

Video Compression Ultra 265, H.265, H.264

H.264 code profile Baseline profile, Main profile, High profile

Frame Rate Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps

Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps;

CIF(352*288), Max 30fps;

Video Bit Rate 128 Kbps~16 Mbps

OSD Up to 4 OSDs

Privacy Mask Up to 4 areas

ROI Up to 8 areas

Motion Detection Up to 4 areas


White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction 2D/3D DNR

Smart IR Supported

Flip Normal/Vertical/Horizontal/180°

Dewarping N/A

HLC Supported

BLC Supported

Network

Protocols IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP,

UPnP, HTTP

Compatible Integration API

Client EZStation

EZView

EZLive

Web Browser Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface

Network 10/100M Base-TX Ethernet

Certifications

Certifications CE: EN 60950-1

UL: UL60950-1

FCC: FCC Part 15

General

Power DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 5.5W

Dimensions (L × W × H) 161 × 63 ×62mm (6.4” × 2.5” × 2.4”)

Net Weight 0.27kg (0.60lb)

Material Metal + Plastic

Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection 4KV

Ingress Protection IP67

Reset Button N/A
