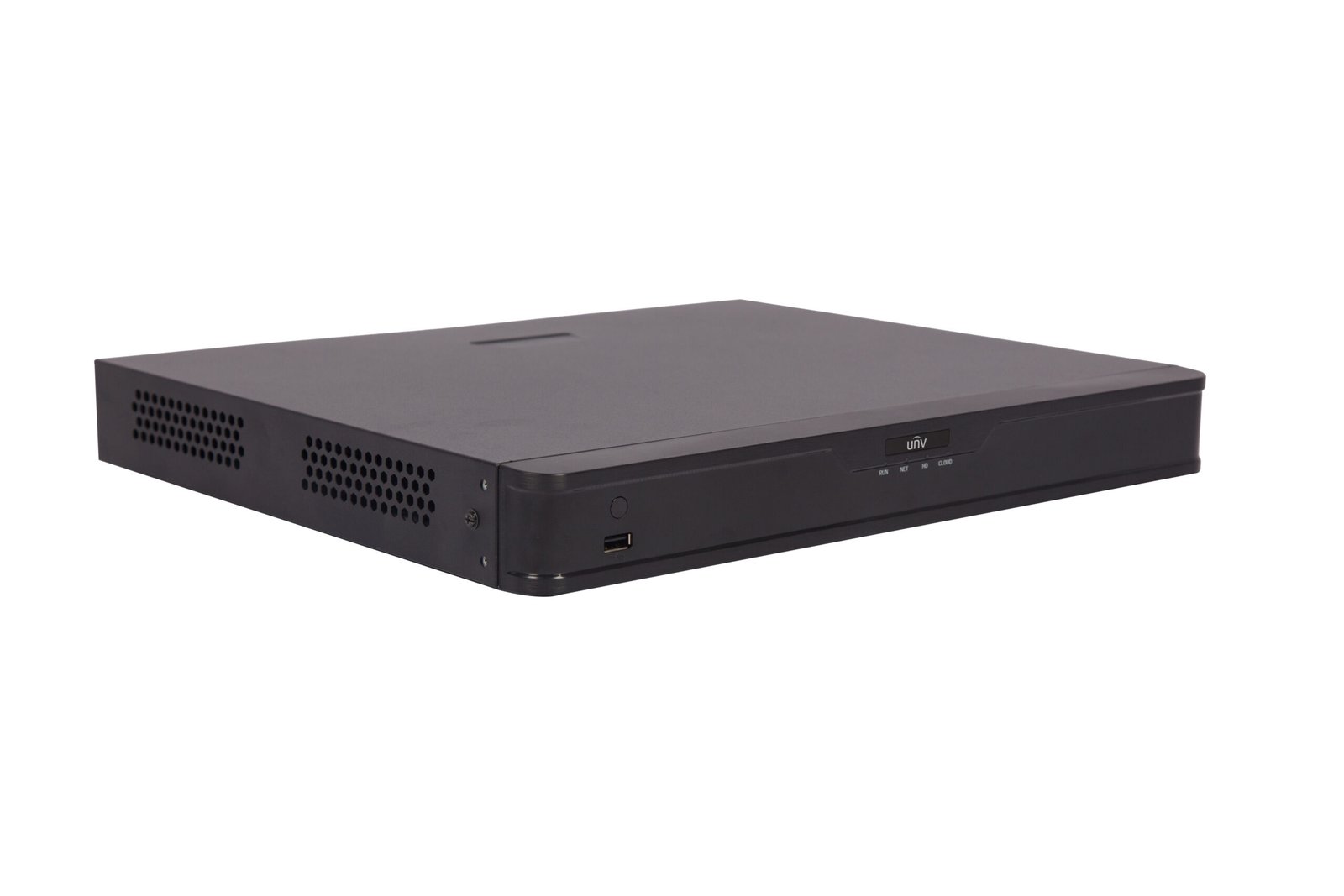

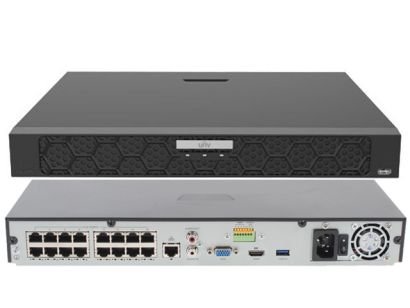

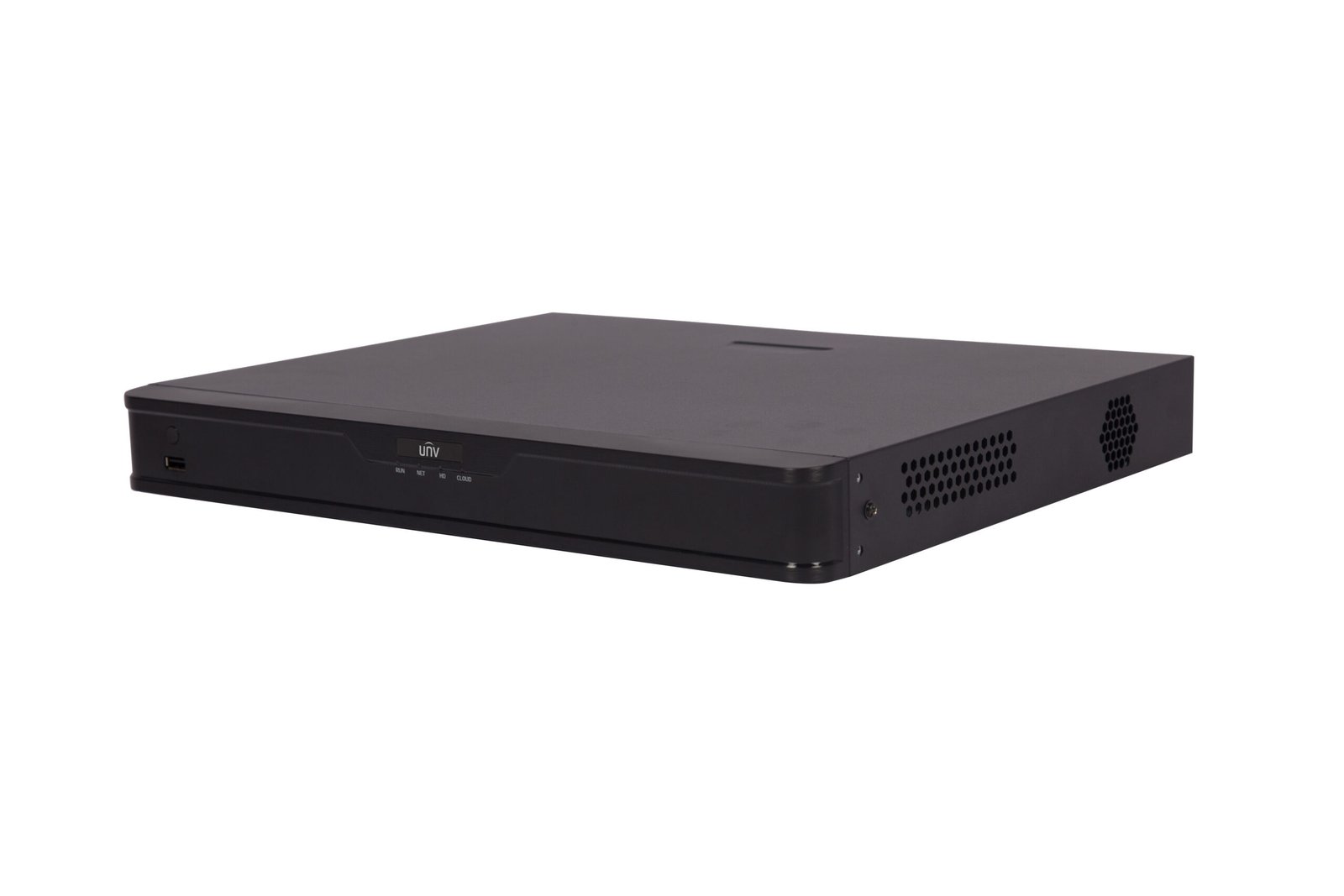

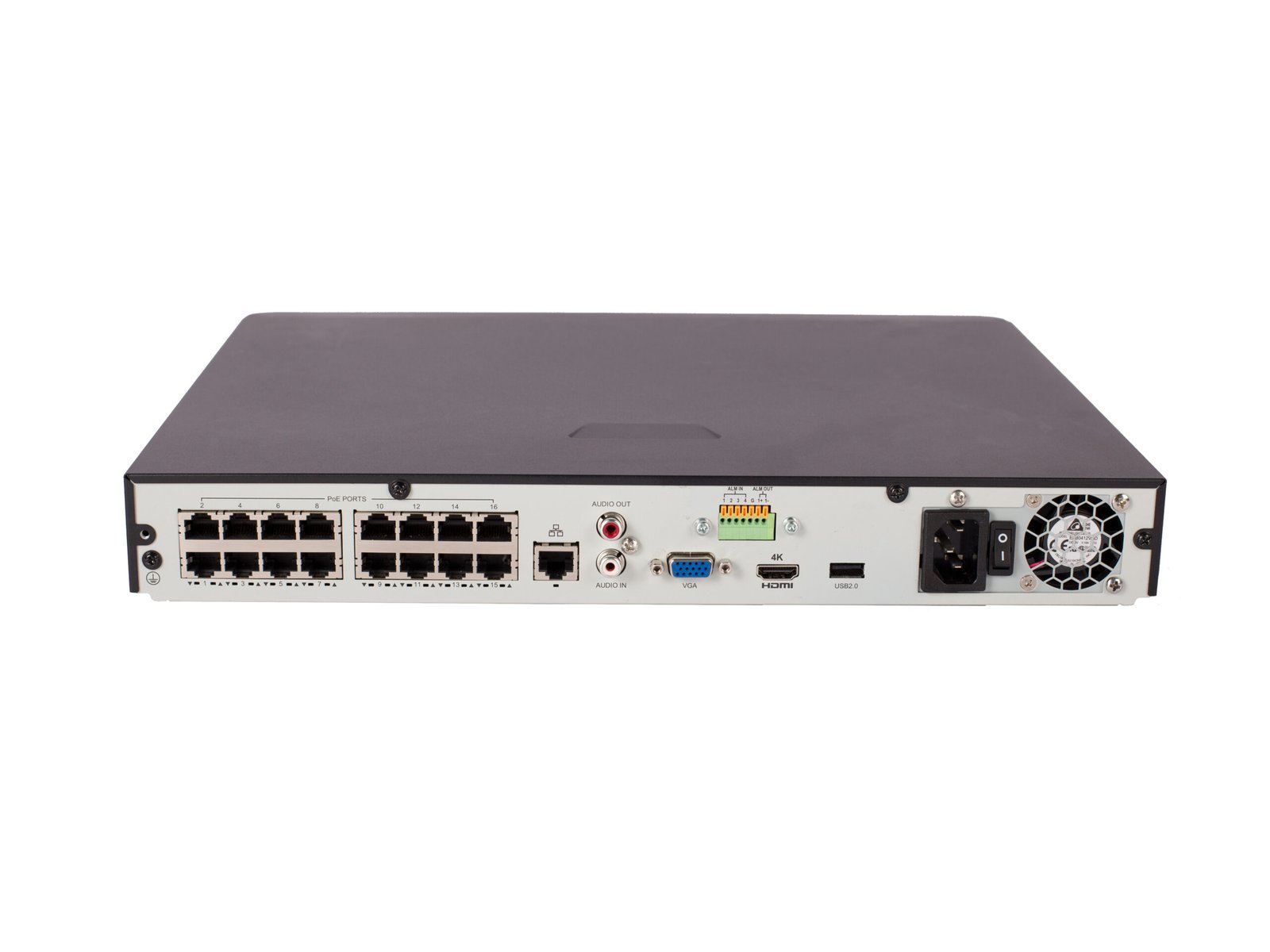

UNV NVR301-16S3 16-Channel 4K Network Video Recorder
Original price was: ₨ 42,500.₨ 36,500Current price is: ₨ 36,500.
☁ 3-5 Days Delivery
UNV NVR301-16S3 is a professional 16-channel 4K Network Video Recorder designed for IP CCTV surveillance. It supports up to 16 IP cameras, Ultra 265/H.265/H.264 compression, 4K recording, HDMI and VGA output, ONVIF compatibility and SATA HDD storage.
Description
UNV NVR301-16S3 16-Channel 4K NVR
The UNV NVR301-16S3 is a professional and reliable 16-channel Network Video Recorder designed for modern IP CCTV surveillance systems. It provides centralized recording, monitoring and management for up to 16 IP cameras, making it suitable for homes, offices, shops, warehouses, schools and commercial security installations.
With support for Ultra 265, H.265 and H.264 video compression, the NVR helps optimize storage and network bandwidth while maintaining high-quality surveillance footage. It supports recording resolutions up to 4K, depending on the connected IP cameras and configuration.
The NVR features HDMI and VGA video outputs, with HDMI supporting up to 3840 × 2160 at 30Hz, allowing users to monitor high-resolution CCTV footage on a compatible display.
It supports compatible third-party IP cameras through ONVIF Profile S/G/T and RTSP, providing flexibility when building or expanding an IP surveillance system.
Key Features
- 16-Channel IP Camera Support
- Up to 4K Recording
- Ultra 265 / H.265 / H.264 Compression
- 4K HDMI Output
- VGA Output
- HDMI + VGA Simultaneous Output
- 1 × SATA HDD Interface
- Up to 8TB HDD Support
- ONVIF Profile S/G/T Support
- RTSP Support
- P2P Remote Access
- 16-Channel Synchronous Playback
- Motion Detection
- Human Body Detection
- Video Loss & Tampering Detection
- 2 × USB 2.0 Ports
- Compact 1U Design
Technical Specifications
| Specification | Details |
|---|---|
| Brand | UNV / Uniview |
| Model | NVR301-16S3 |
| Product Type | Network Video Recorder |
| IP Camera Input | 16 Channels |
| Incoming Bandwidth | 64 Mbps |
| Outgoing Bandwidth | 48 Mbps |
| Video Compression | Ultra 265 / H.265 / H.264 |
| Recording Resolution | Up to 8MP / 4K |
| HDMI Output | Up to 3840 × 2160 @ 30Hz |
| VGA Output | Up to 1920 × 1080 |
| HDD Interface | 1 × SATA |
| HDD Support | Up to 8TB |
| Network Port | 1 × RJ45 |
| USB | 2 × USB 2.0 |
| Camera Compatibility | ONVIF Profile S/G/T & RTSP |
| Remote Access | P2P Supported |
| Power Supply | 12V DC |
| Design | Mini 1U |
| Use | Home, Office, Shop & Commercial CCTV |
